Time Triggered Pipeline Patterns

The time resource produces a new version for the time interval that was declared in its definition in the pipeline configuration file.

The two most common usages are having the time resource trigger on an interval:

resources:
  - name: trigger-every-3-minutes
    type: time
    source:
      interval: 3m

Or trigger once within a certain time range:

resources:
  - name: trigger-daily-between-1am-and-2am
    type: time
    source:
      start: 1:00 AM
      stop: 2:00 AM
      location: America/Toronto

Check the README of the time resource for more details.

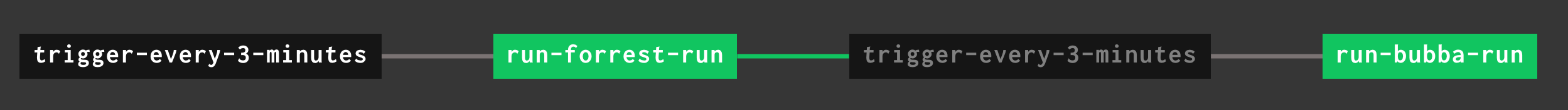

1) - Single Time Trigger

The following is an example of a pipeline that is triggered by a time resource on a pre-determined interval.

resources:
  - name: trigger-every-3-minutes
    type: time
    source:
      interval: 3m

jobs:
  - name: run-forrest-run
    plan:
      - get: trigger-every-3-minutes
        trigger: true
    # can add other steps to run in this job

  - name: run-bubba-run
    plan:
      - get: trigger-every-3-minutes
        trigger: true
        passed:
          - run-forrest-run
    # can add other steps to run in this job

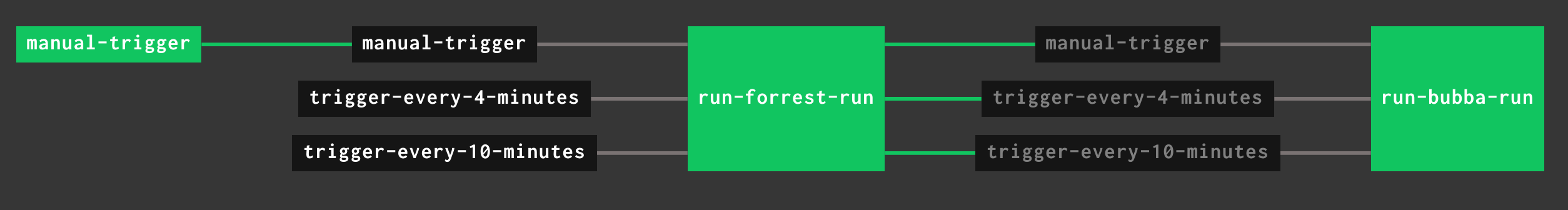

2) - Multiple Time Triggers

As an enhancement to the previous sample with a single time trigger, this pipeline example implements two time resource triggers and the ability to manually kick it off outside the time resources schedules.

The first time you set up a pipeline like this you will need to manually trigger it in order to satisfy the passed constraint of the manual-trigger resource. Once one version is available that satisfies the passed constraint all future triggers by the other resources will work as expected.

resources:
  - name: trigger-every-4-minutes
    type: time
    source:
      interval: 4m
  - name: trigger-every-10-minutes
    type: time
    source:
      interval: 10m
  - name: manual-trigger
    type: time
    source:
      interval: 1m

jobs:
  - name: manual-trigger
    plan:
      - put: manual-trigger

  - name: run-forrest-run
    plan:
      - get: trigger-every-4-minutes
        trigger: true
      - get: trigger-every-10-minutes
        trigger: true
      - get: manual-trigger
        trigger: true
        passed:
          - manual-trigger
    # can add other steps to run in this job

  - name: run-bubba-run
    plan:
      - get: trigger-every-4-minutes
        trigger: true
        passed:
          - run-forrest-run
      - get: trigger-every-10-minutes
        trigger: true
        passed:
          - run-forrest-run
      - get: manual-trigger
        trigger: true
        passed:
          - run-forrest-run
    # can add other steps to run in this job
