v8.3.0 Release

v8.3.0 has been released. This release was brought to you by 50 PRs from 13 contributors, seven of them first-time contributors. Thank you to everyone who contributed to this release!

Read the release notes on GitHub for a full rundown of what's new and fixed. The rest of this post will go over the biggest features I'm excited about in this release.

Thank You Patrons!

My work on Concourse is made possible by those who sponsor me on GitHub, as well as my corporate clients. Thanks go to all of you for supporting the maintenance and development of Concourse!

If your organization uses Concourse and could benefit from technical support, training, or consulting in relation to Concourse, please reach out to me. I still have capacity for more corporate clients.

If you're a smaller team, or an organization that just wants to ensure the continued development of Concourse, you can sponsor me on GitHub or contact me for other sponsorship options. Any and all support is greatly appreciated 🙏

Now let's go over all the new features and changes in this release. I've split these up by "user-facing" and "operator" features. Feel free to jump to the section that's relevant to you.

User-facing Features

Job and Step-level tags - #9606

The tag step modifier, used for telling Concourse to run a particular step on a worker with matching tag(s), has previously been very verbose to use. If you wanted to tag multiple steps you had to tag each step individually, like this:

jobs:
- name: my-job
  plan:
    - in_parallel:
      - get: repo
        tags: ["minty"] # TAG!
      - get: ci
        tags: ["minty"] # TAG!
      - get: image
        tags: ["minty"] # TAG!

Which can be really annoying if your job has a lot of steps and you want them all tagged. The above example can now be re-written at the step-level, using the do or in_parallel steps, like this:

jobs:
- name: my-job
  plan:
    - tags: ["minty"] # All the tags, none of the mess ✨
      in_parallel:
      - get: repo
      - get: ci
      - get: image

Or at the job-level which will tag all steps in the job:

jobs:
- name: my-job
  tags: ["minty"] # Much tags, little typing!
  plan:
    - in_parallel:
      - get: repo
      - get: ci
      - get: image

That should help DRY up your pipelines!

Pipeline Instance Groups get a List View - #9626

This PR actually made a couple of changes, but the big one is that pipeline instance groups have a list view option now. If you navigate to an instance group you'll see the same grid layout like on the main dashboard. There is no HD view option for instance groups like there is for the main dashboard.

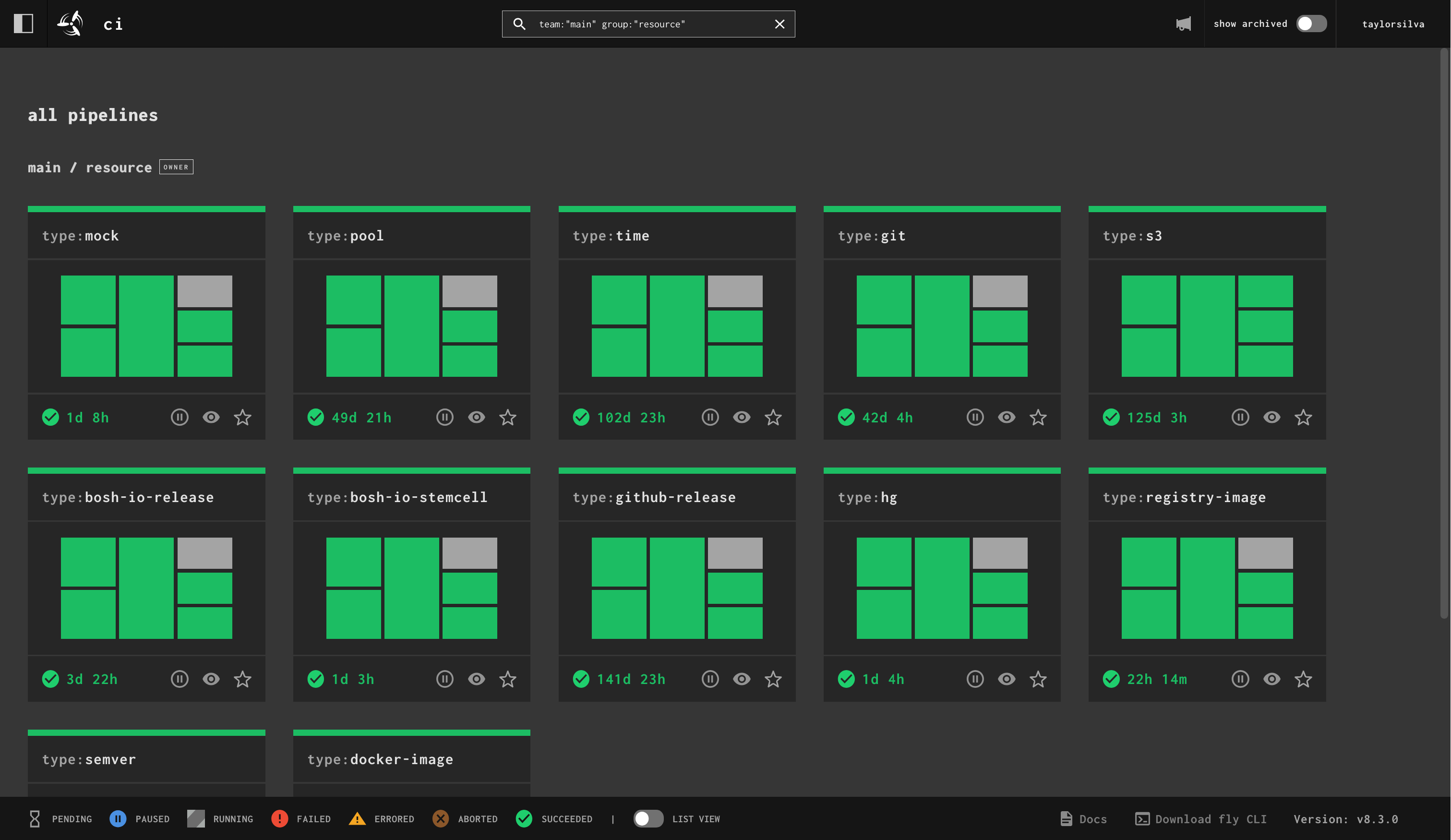

Pipeline instance group displayed with the default grid view.

In the footer of the page there is now a "List view" toggle which will render the pipelines in a list, one instance pipeline per line:

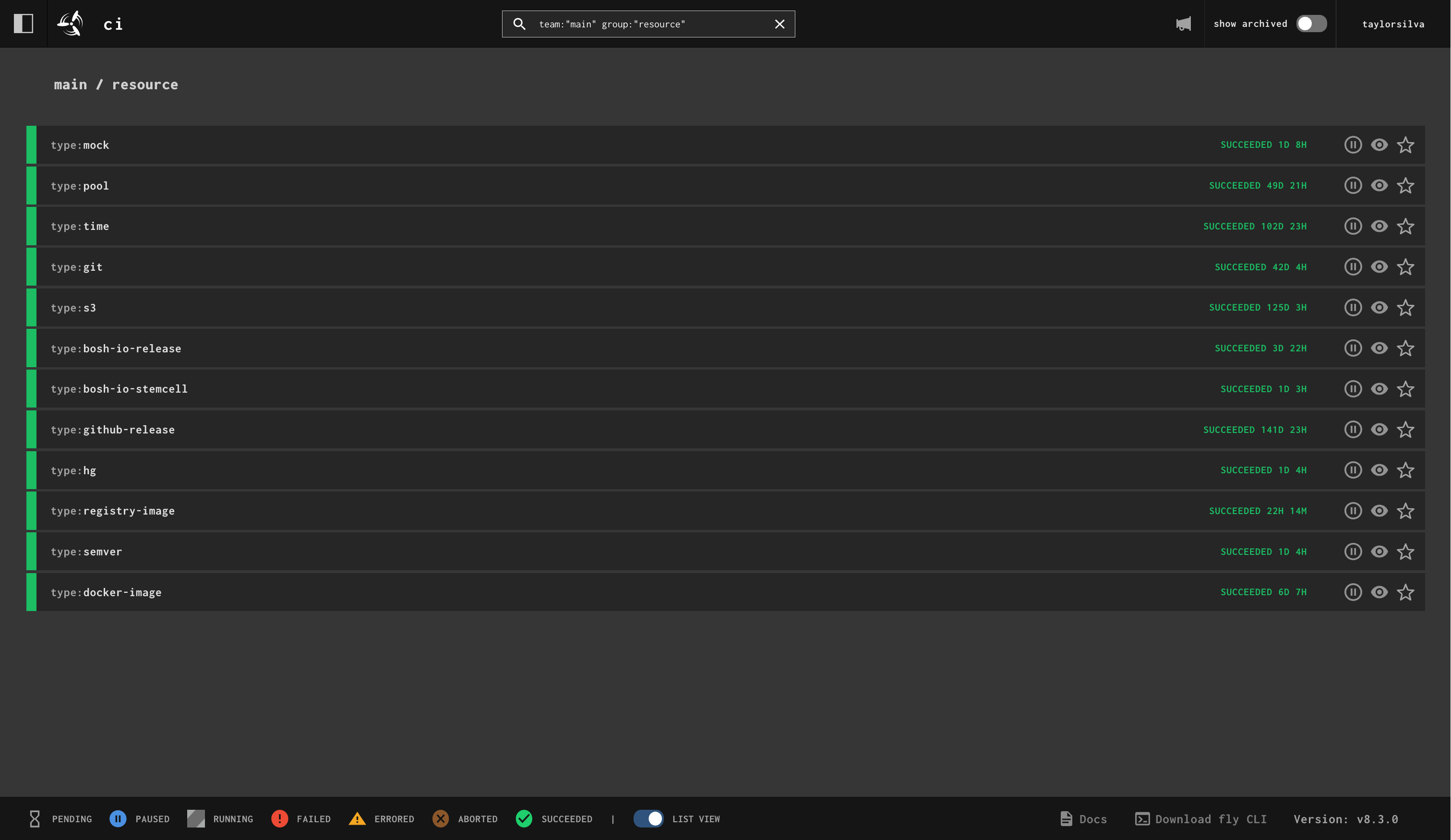

Pipeline instance group displayed with the list view.

The other change also introduced is that the /hd path has been removed and we instead persist the state of the HD and list view toggles in your browser's local storage. The state of both toggles are independent from each other.

Thank you @bcersows for this feature!

Hide UI Elements - #9625

Back in the pre-covid days, it was quite common for teams using Concourse to have large monitors or TVs displaying their Concourse pipelines. If users had multiple pipelines they wanted to monitor they would make local HTML pages with iframe's displaying all their pipelines, or have multiple browser windows open. They would look something like this:

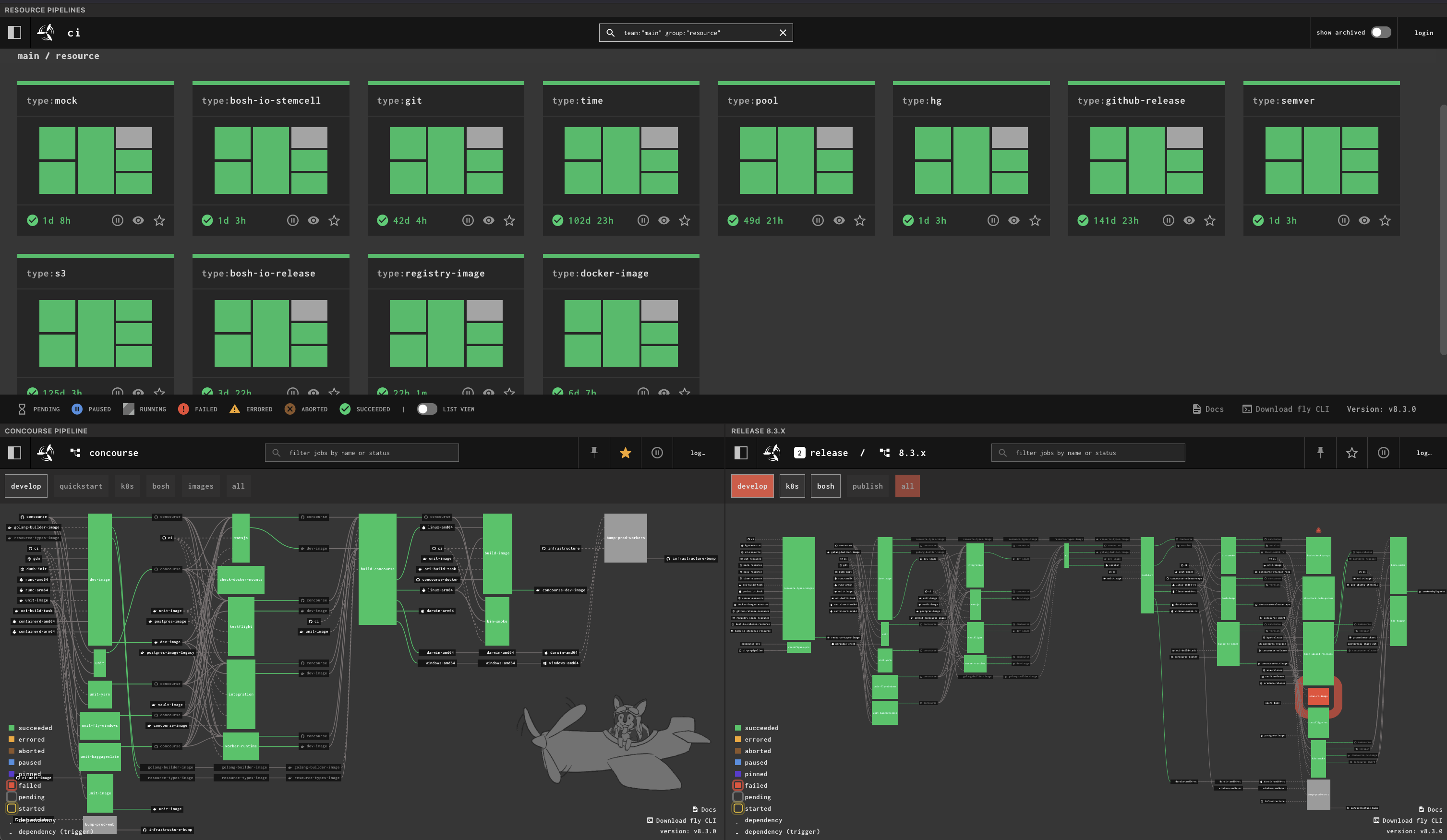

Static HTML page with three iframes showing three different Concourse pipelines. UI elements such as the top navigation bar are visible in all three iframes.

This worked fine except for the fact that all the UI elements, particularly the top navigation, are repeated three times, taking up a lot of visual real estate. One of the oldest issues I had left open, #1477, asked for a way to hide the extra UI elements.

You can now hide the UI elements on any Concourse page by adding ?hide_ui=true to the URL. The iframe page above now looks like this:

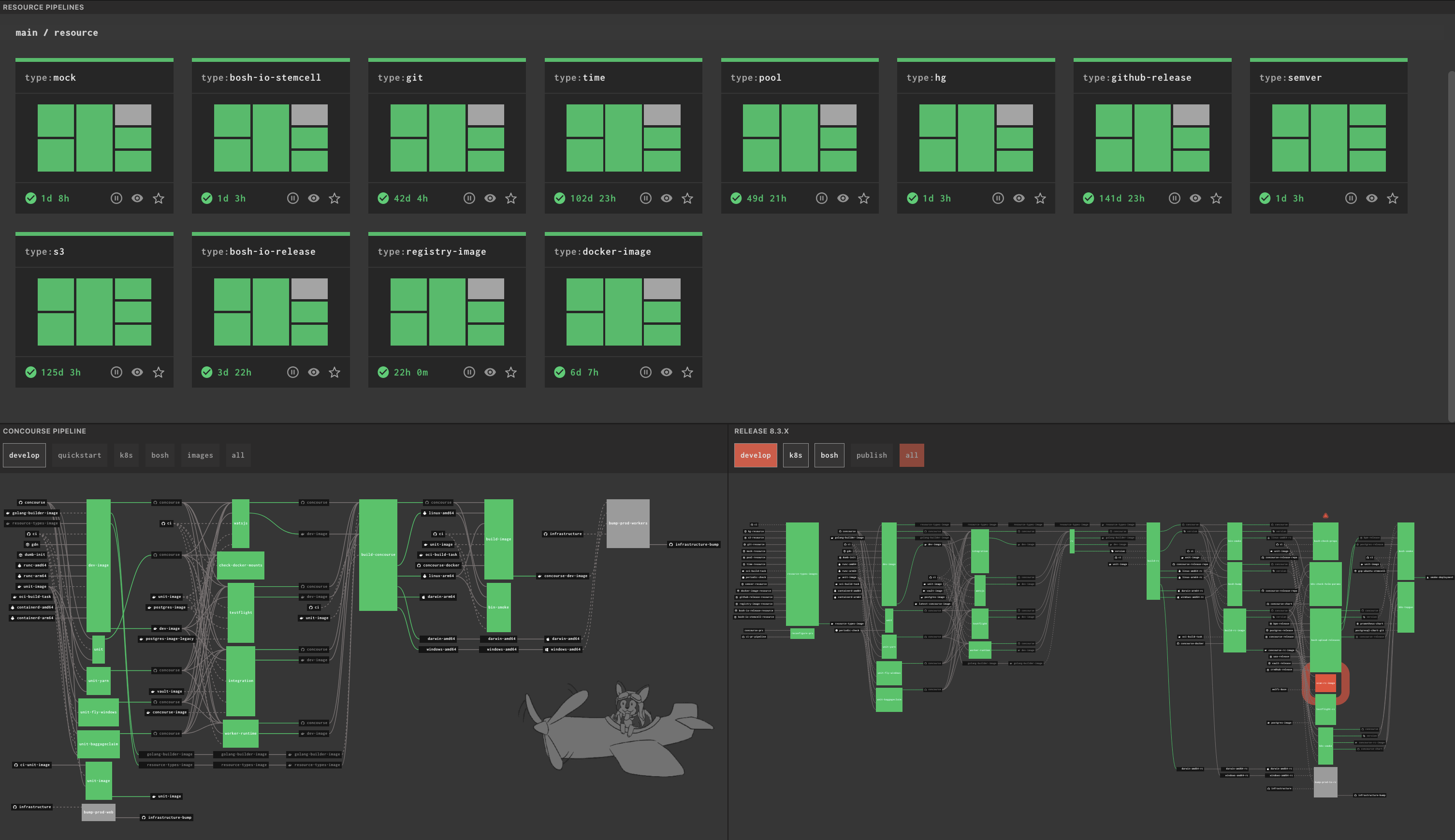

Static HTML page with three iframes showing three different Concourse pipelines. UI elements are not visible in any of the iframes.

Task Volumes Will be Owned by Non-root Users - #9593

This feature closes one of the oldest and most +1'd issues in the repo: Issue #403

Previously, when you ran a task as a non-root user, any input, output, and cache volumes would not be owned by that user. They would instead be owned by root, which would then result in some kind of permission error when trying to read/write files from the volume.

Users made workarounds, the main one being to start the task as root, chown the volumes to your desired user, and then run your actual task script under the desired non-root user. Lots of duct tape holding that together. None of these workarounds are necessary anymore!

Now Concourse will recognize if a task starts with a non-root user and will chown the volumes to that user's UID/GID. No more permission issues when reading/writing files to your task's volumes.

The only thing to watch out for is in regard to output volumes. When passed to other task or step containers, output volumes will still be owned by the non-root user. This shouldn't be an issue if the later container is running as root, and in the case where you're running as a different non-root user, the volume(s) will be chown'd again to the new non-root user. This is just a small permission thing that one should be aware of when passing volumes from containers that ran with a non-root user.

This is the only breaking change in this release, and I'm hopeful it won't cause any issues for any existing pipelines. If something does break, please open an issue!

Git Resource Tracks Branches and Tags - concourse/git-resource#474

I've made a structural change to the git resource (that is backwards compatible) that allowed me to add two new features to it:

  • Track tags across all branches in a repository
  • Track branches in a repository

If you look at the README for the git resource, you'll find a new top-level key called version_type. It has a default value of commits which represents the original behaviour of the resource: track commits on a specific branch. It's the two new values, tags and branches, which may be of interest to some users.

The commits version type only allowed you to track tags that were on the specified branch. It was also very slow at finding tags since it had to go through hundreds of commits just to find tags. On large repositories a check could take minutes to complete and not even turn up all matching tags.

The tags version type allows us to take a smarter and faster approach to finding tags. Checking the same large repository for tags (I tested this with the golang/go repo), the check completed in a few seconds AND found all matching tags in the repository.

The last version type, branches, finds all matching branches in the repository and produces a branches.json in the get step. This is useful for passing into the across step and setting pipelines based on branch names.

Operator Features

Automatically Prune Stalled Workers - #9604

There is now a CONCOURSE_STALLED_WORKER_TIMEOUT that you can set on your web nodes. This is an opt-in feature that is off by default. It takes Go time.Duration values.

When configured, any worker that is in the stalled state longer than the timeout will be automatically pruned by the web nodes. No need to manually run fly prune-worker anymore!

Detailed Health Endpoint - #9588

There is now a /api/v1/health endpoint that gives detailed health information about the cluster. The endpoint is not complete yet, but it is useful already for understanding the basic health of your Concourse cluster. Keep an eye out for more PRs from @Kump3r as he continues to work on this.

Workers Can Specify Their Own Max Tasks - #9627

There's been a container placement strategy called limit-active-tasks that I've seen to be very useful for not overloading workers. With that strategy set, you could also set CONCOURSE_MAX_ACTIVE_TASKS_PER_WORKER and the web nodes would enforce that limit across all workers. This works fine but it assumes all workers are the same size of compute. In larger clusters this is usually not true, workers may come in all sorts of sizes.

Workers now have a way of telling the web nodes the max number of tasks they will accept by setting CONCOURSE_MAX_ACTIVE_TASKS on your worker(s).

CONCOURSE_MAX_ACTIVE_TASKS_PER_WORKER on the web node acts as the default value in this case, with CONCOURSE_MAX_ACTIVE_TASKS overriding it on a per worker basis. You must be using the limit-active-tasks placement strategy, otherwise this new setting will have no effect.

Automatically Destroy Archived Pipelines - #9630

This is another opt-in feature that is off by default. When CONCOURSE_DESTROY_ARCHIVED_PIPELINES_AFTER is set on your web nodes, any archived pipelines that have been archived for longer than the given duration (Go's time.Duration format) will be deleted.

This is a handy way to ensure your database doesn't grow forever, especially if you make liberal use of the pipeline archiving feature from the set_pipeline step.

Everything Else

Last few things I'd like to shout-out related to this release:

  • Thanks to @VikranthBala for adding --*-shared-path flags to the Credhub and Kubernetes secret managers (#9615, #9643), bringing them into feature parity with all the other credential managers.
  • Thanks to @aliculPix4D and the folks at Pix4D for fixing up a bunch of things related to volume streaming on Windows workers
  • Both @IvanChalukov and @Kump3r are the first outside contributors to get Approver status in the concourse/concourse repo. They've proven to be good stewards of the project and have made many contributions at this point.
  • Thanks to @kcbimonte for his continued work on helping maintain the docs. He's also been elevated to Approver status for the concourse/docs repo.

If you find any bugs or regressions please let us know in our GH Discussion forum: https://github.com/orgs/concourse/discussions

Enjoy the release and may your pipelines be ever green! ✈️
